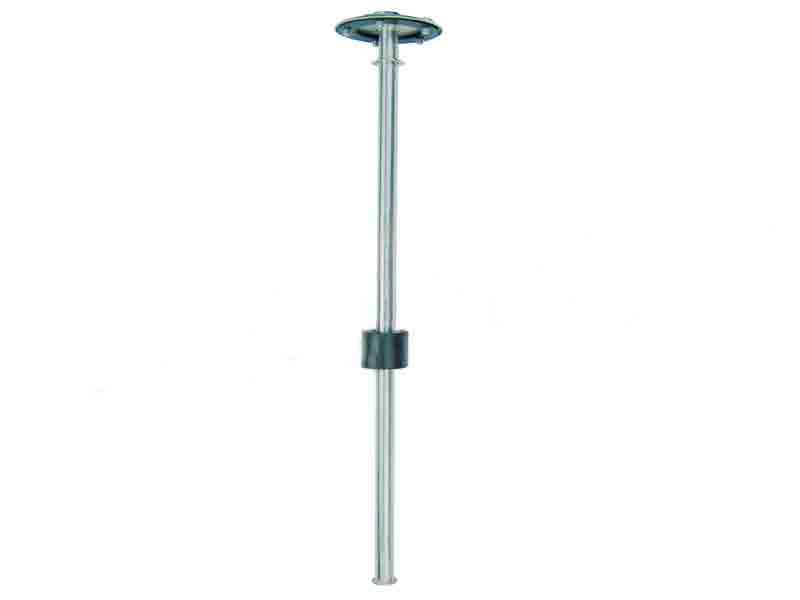

Fuel Level Sensor Model F2

PRODUCT DETAILS

F2 series fuel level sensor

Place of Origin: China

Brand Name: JYM

Model: F2

Certificate: CE

Minimum Order Quantity: 1pcs

Payment Term: T/T, Western Union, L/C

Delivery Time: 15 days after payment



Functions/Features:

 -Simple structure, simple installation: mounted flange, internationalstandard SAE 5 holes or SAE 6 holes screw installation

-Wide range of input voltage: ranging from 9V to 36V, adaptable tomiscellaneous environment

-Protection against overload, short circuit and reverse connection

-Multiple signal output: Voltage output 0~5V, Current output:4~20mA, Resistance output: 0~190Ω



Specifications:

Principle of signal acquisition

Float moving

Feeding (input powder)

9~36V

Accuracy

<2%

Signal format/ output format (Optional)

Option A: voltage 0~5V

Option B: current 4~20mA

Option C: Resistance 0~190Ω

Communication interface

RS232 or RS485

Measurement range

100mm~2000mm

Housing material

SUS304/316 stainless steel

working temperature

-40℃~+85℃ (-40℉~+185℉)

Lifespan/service

5 million times

Installation

SAE 5 holes or SAE 6 holes

BSP screw or NPT screw

Weight

350g
